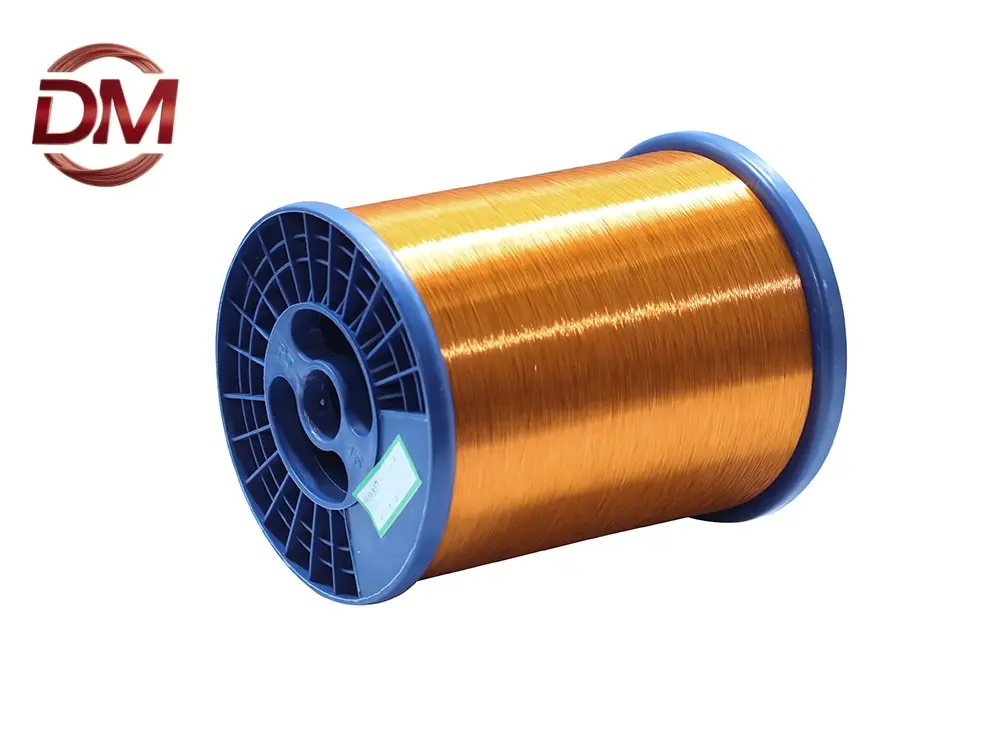

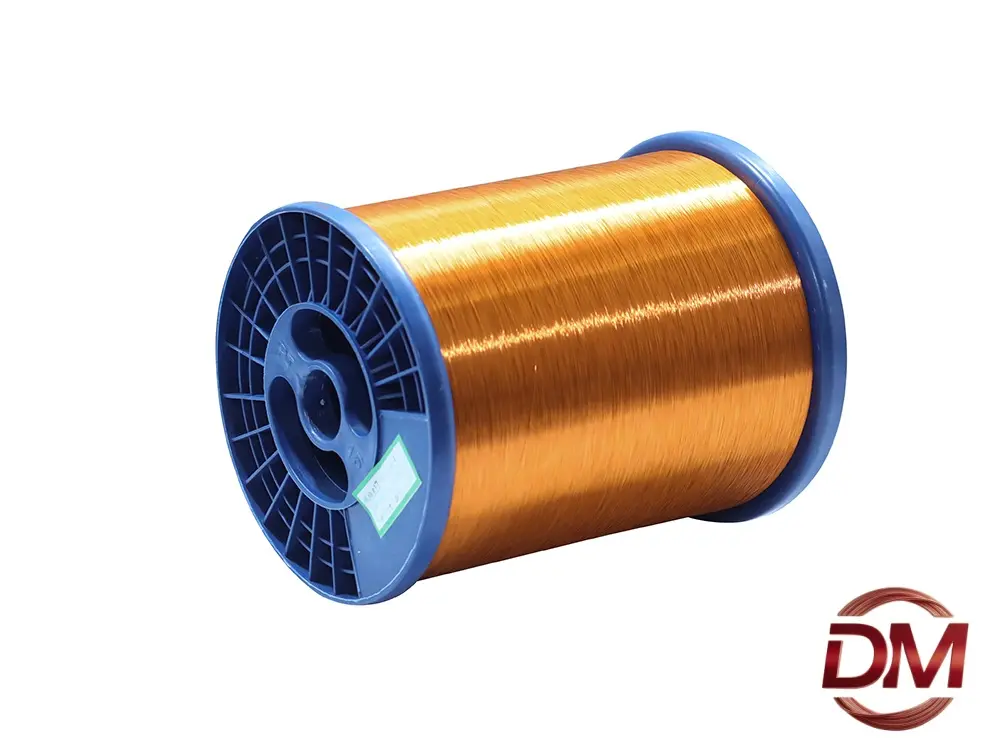

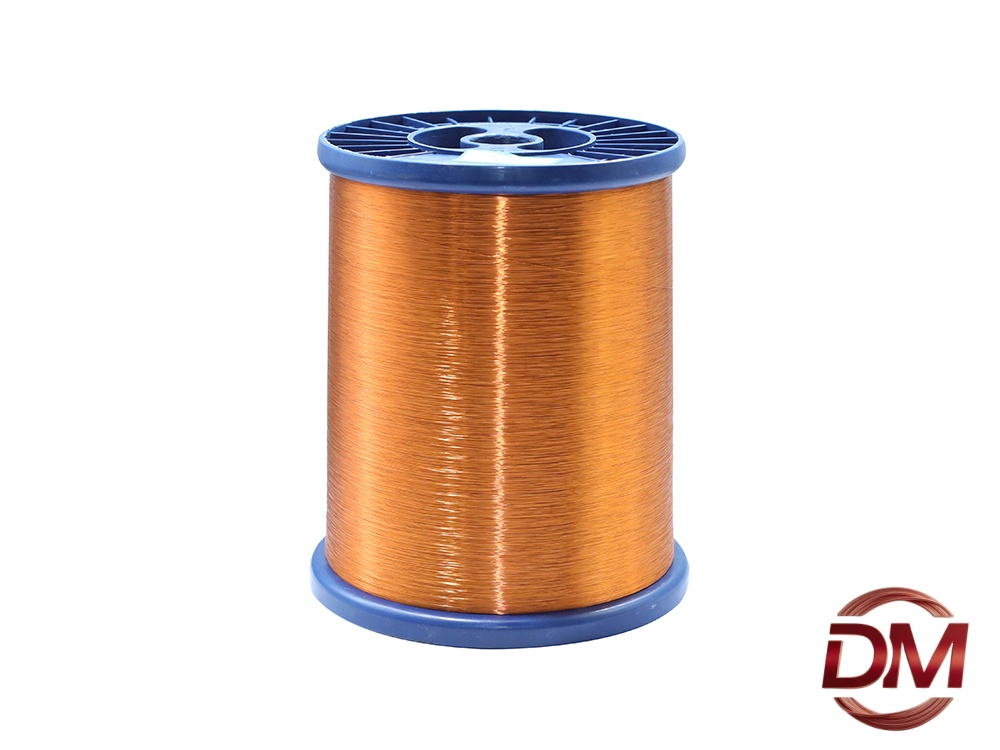

Enameled Copper Wire

Enamelled copper wire is one of the main types of winding wire. It is composed of conductor and insulating layer. The bare wire is softened by annealing, painted for many times, and baked. With mechanical properties, chemical properties, electrical properties, thermal properties of four major properties.

It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding.

    Product Types

     Polyester Enameled copper round wire(PEW);

     Polyurethane Enameled copper round wire(UEW);

     Polyesterimide enameled copper round wire(EIW);

     Polyesterimide over-coated with polyamide-imide enameled copper round wire(EIW/AIW);

     Polyamide-imide enameled copper round wire(AIW)

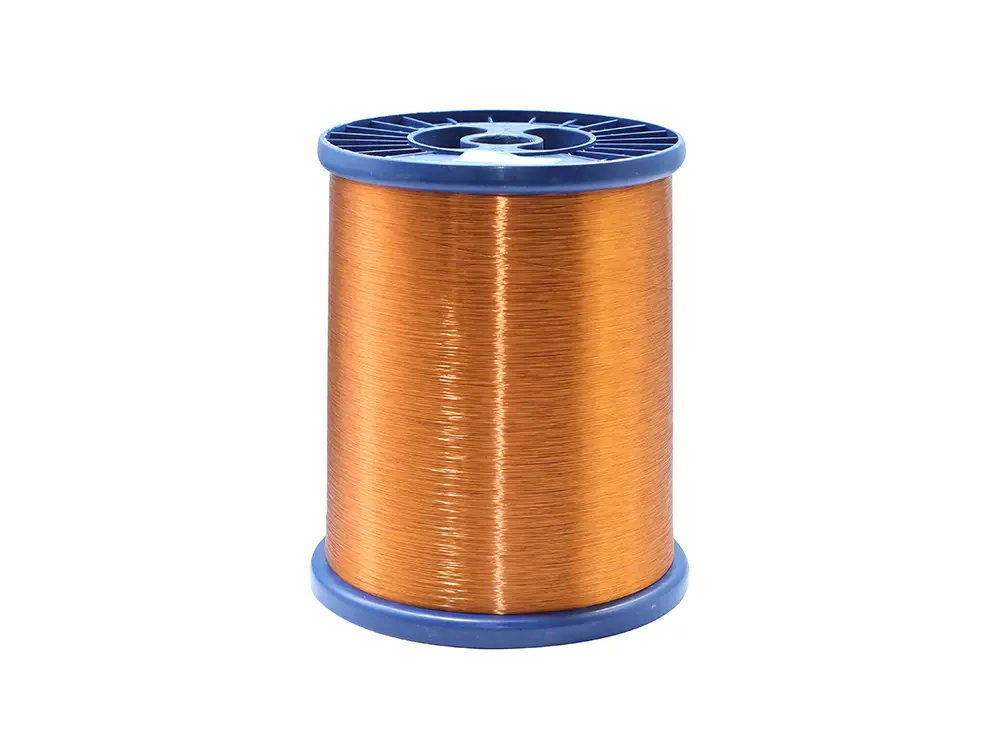

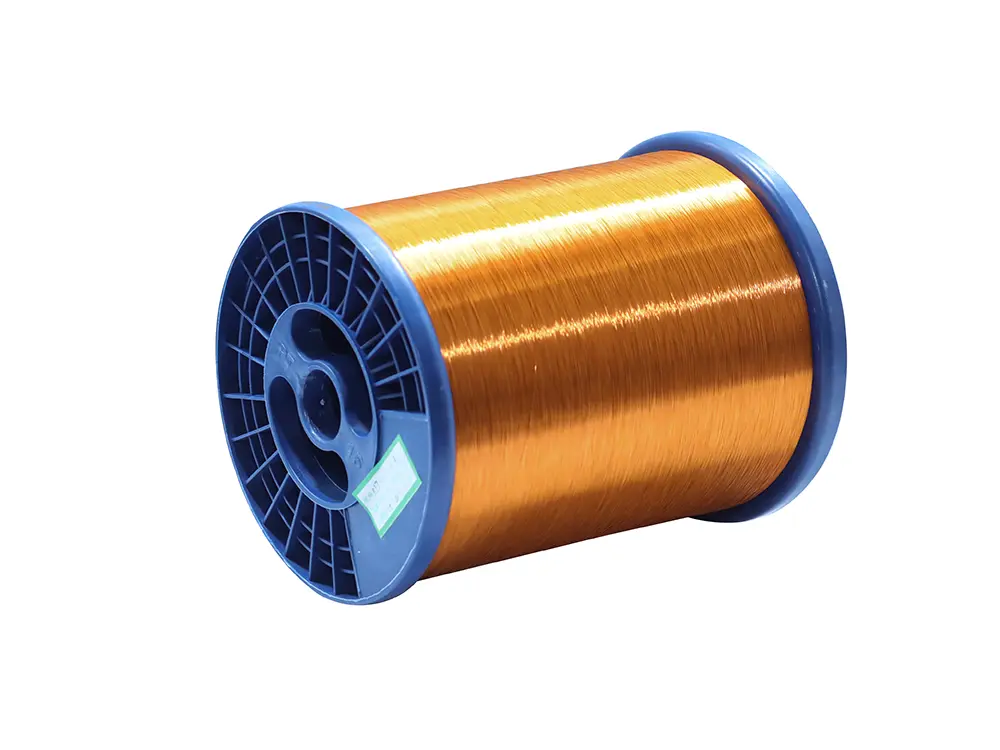

    Copper Clad Aluminum Enameled Wire (3)

    Specification

    Comparison of Different Product Type

    Product Type

    Enameled Copper Wire

    Diameter Range

    0.10mm-2.50mm

    DC Resistance (20°C )

    0.0172Ω/m

    Conductor Density(g/cm³)

    8.96

    Tensile Strength Nom(N/mm²)

    280

    Elongation Nom (%)

    26

    Conductivity (MS/m)

    56-58.5

    Breakdown Voltage(>2000V)

    Non-breakdown

    Property

    Excellent thermal conductivity, high mechanical strength, superior compatibility,Good weldability

    Application

    Transformer, Electric Motor, Generator, Power Transmission, Specialty wires and cables, Large-scale electric motors

    Advantages of Enameled Copper Wire

    1. High resistance to heat shock.

    2. High temperature.

    3. Good performance in cut-through.

    4. Suitable for high-speed automated routing.

    5. Able to be direct welding.

    6. Resistant to high frequency, wearing, refrigerants and electronics corona.

    7. High breakdown voltage, small dielectric loss angle.h. Environment-friendly.

    Application of Enameled Aluminum Wire

    Enameled wires are widely used in various fields such as electrical and electronic industries. The following are some of the main application scopes:

    enamelled wire for motor and transformer

    The motor is a large user of enamelled wire, the rise and fall of the motor industry is very important to the enamelled wire industry. Transformer industry is also a large user of enamelled wire. With the development of the national economy, the increase of electricity consumption, transformer demand also increases.

    enamelled wire for household appliances

    Home appliances with enamelled wire is a very huge market, such as TV deflection coil, automobile, electric toys, electric tools, range hood, induction cooker, microwave oven, speaker equipment with power transformers and so on. The consumption of enamelled wire in household appliance industry has exceeded that of industrial motor and transformer enamelled wire, becoming the largest user of enamelled wire. Low friction coefficient enamelled wire, compound enamelled wire, "double zero" enamelled wire, fine enamelled wire and other types of demand will increase significantly.

    enamelled wire for automobiles

    The rapid development of China's automotive industry and the increasing demand for enameled wire have made our products an important component of the industry's success. Our high-quality and reliable automotive enameled wires are the ideal solution for various automotive applications, and we are committed to providing customers with the best product quality and service.

    New enamelled wire

    The introduction of new enameled wires has revolutionized the electrical engineering department, creating high-performance, multifunctional, and efficient wires that meet unique industry requirements. Micro enameled wire has become a new market trend, serving various fields such as electronics, electroacoustic equipment, and laser heads. With the rapid expansion of the household appliances and electronics industry, the demand for these wires continues to grow, which will become a high demand and rapidly expanding market.

    Spool & Container Weight

    Packing

    Spool type

    Weight/Spool

    Maximum load quantity

    20GP

    40GP/ 40NOR

    Pallet

    PT4

    6.5KG

    22.5-23 tons

    22.5-23 tons

    PT10

    15KG

    22.5-23 tons

    22.5-23 tons

    PT15

    19KG

    22.5-23 tons

    22.5-23 tons

    PT25

    35KG

    22.5-23 tons

    22.5-23 tons

    PT60

    65KG

    22.5-23 tons

    22.5-23 tons

    PC400

    80-85KG

    22.5-23 tons

    22.5-23 tons

    Product Details

    Paper Covered Aluminum Wire (2)Paper Covered Aluminum Wire (3)Paper Covered Aluminum Wire (1)
