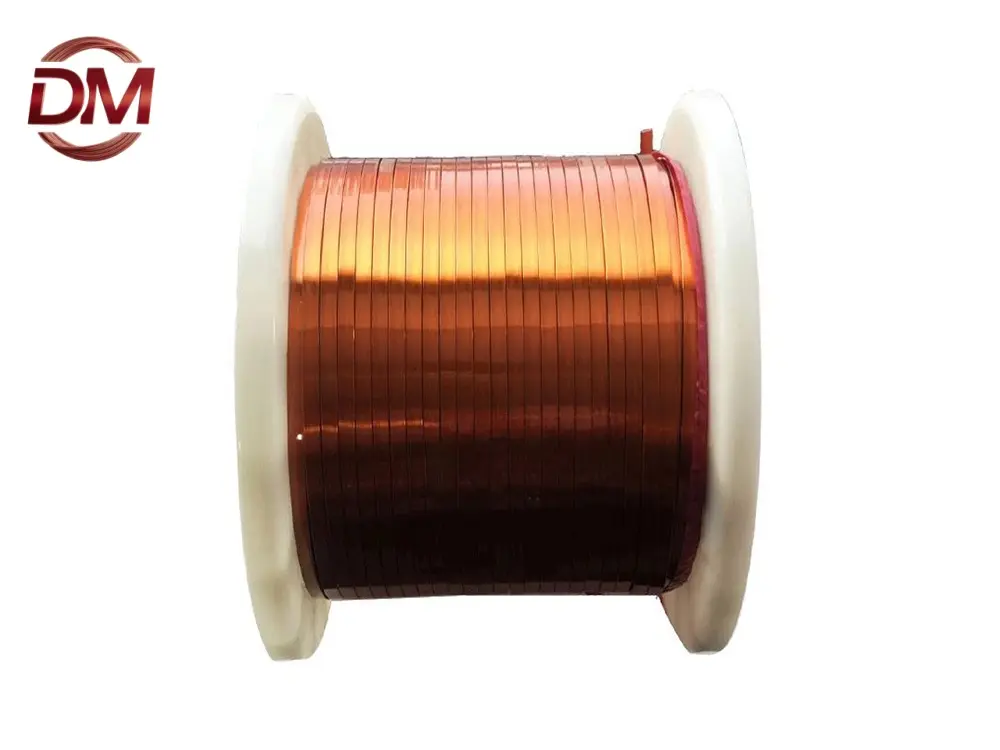

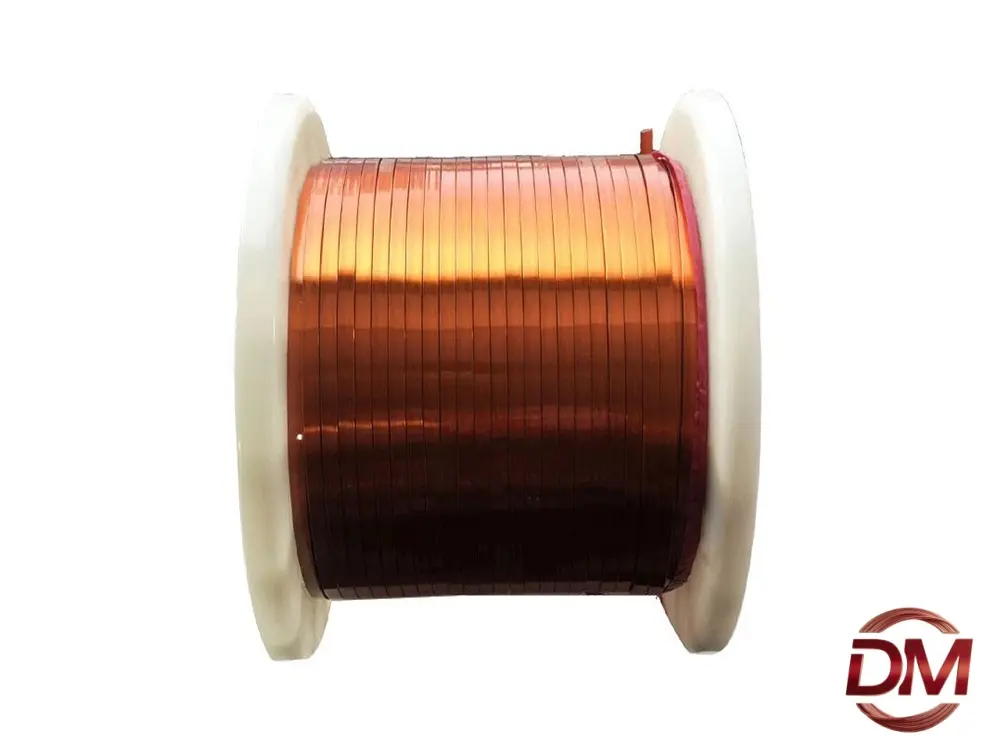

200 Class Enameled Flat Copper Wire
Product Types
I/AIWR/200, Q(ZY/XY)B/200
Temperature Class(℃): C
Conductor Thickness: a:0.90-5.6mm
Conductor Width: b:2.00~16.00mm
Recommended Conductor's Width Ratio: 1.4<b/a<8.0
Any customer-made specification will be available,please kindly inform us in advance.
Standard: GB/T7095.6-1995, IEC60317-29
Spool Type: PC400-PC700
Package of Enameled Rectangular Wire: Pallet Packing
Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well
Quality Control: company internal standard is 25% higher than IEC standard
Spool & Container Weight
Packing |
Spool type |
Weight/Spool |
Maximum load quantity |
|
20GP |
40GP/ 40NOR |
|||
Pallet (Aluminum) |
PC500 |
60-65KG |
17-18 tons |
22.5-23 tons |
Pallet (Copper) |
PC400 |
80-85KG |
23 tons |
22.5-23 tons |
Conductor Material
● Once the raw material of winding wires is softened copper,the regulation in accordance with GB5584.2-85,the electric resistivity at 20C is lower than 0.017240.mm/m.
● As per different mechanical strength,the non-proportional extension strength of semi-rigid copper conductor Rp0.2(>100~180)N/mmRp0.2(>180~220)N/m㎡Rp0.2(>220~260)N/m㎡
● Once the raw material of winding wires is softened aluminum,the regulation in accordance with GB5584.3-85,the electric resistivity at 20C is lower than 0.02801Ω.mm/m
● As per different requirement of electrical insulation,the thickness of paint will be available for 0.06-0.11mm or 0.12-0.16mm,the thickness of self-adhere layer for thermal bonding winding wires is 0.03-0.06mm.The optical loss test facility named TD11 can be used for screening the coating process,in order to reach the best cured coating.
● Any further requirement for the thickness of coating,please kindly inform us in advance.
Advantages of Enameled Rectangular Wire
1. Meet the design needs of lower height, smaller volume, lighter weight, higher power density of electronic and motor products, widely used in electronics, electrical appliances, motor, network communications, smart home, new energy, automotive electronics, medical electronics, military electronics, aerospace technology and other fields.
2. Under the same cross-sectional area, it has a larger surface area than the round enamelled wire, which can effectively reduce the "skin effect", reduce the high-frequency current loss, and better adapt to the high-frequency conduction work.
3. Effectively reduce the resistance, through larger current, higher Q value can be obtained, more suitable for high current load work.
4. Have simple structure, good heat dissipation performance, stable performance,good consistency, can still maintain well in high frequency and high temperature environment.
5. Strong anti-electromagnetic interference (EMI), low vibration, low noise, high density installation.
6. High rate of groove filling.
7. The product ratio of conductor section is more than 97%. The thickness of the corner paint film is similar to that of the surface paint film.
8. Low incidence of pinhole, good winding performance, can adapt to a variety of different winding methods.
Application of 200 Class Enameled Flat Copper Wire
● 200 Class Enameled Flat Copper Wire is used for dry type transformer and power transformer.
● Electric motors, auto motors, generators and new energy vehicles.
● Enameled Rectangular Wire is used in motor, network communications, smart home.

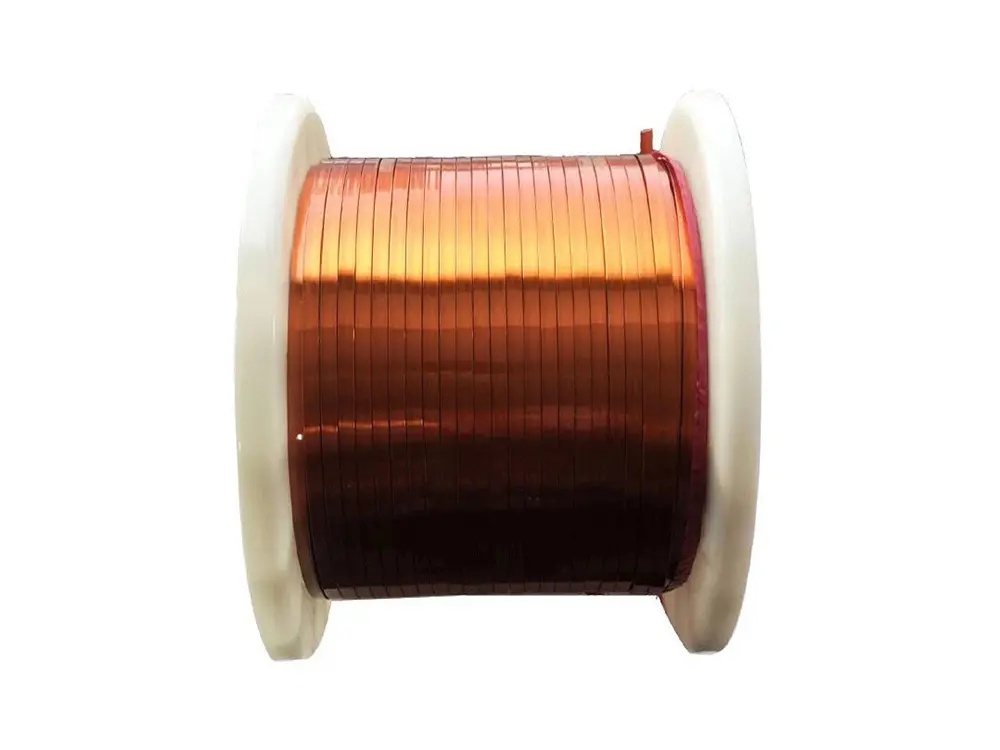

Product Details
