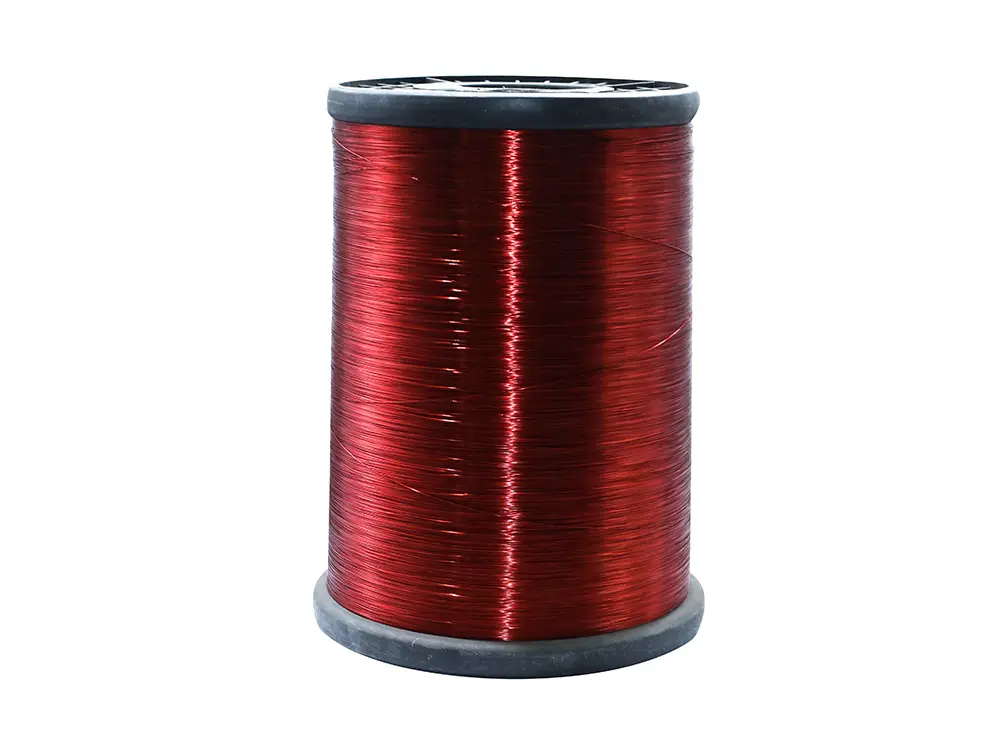

Copper Clad Aluminum Enameled Wire (9).JPG

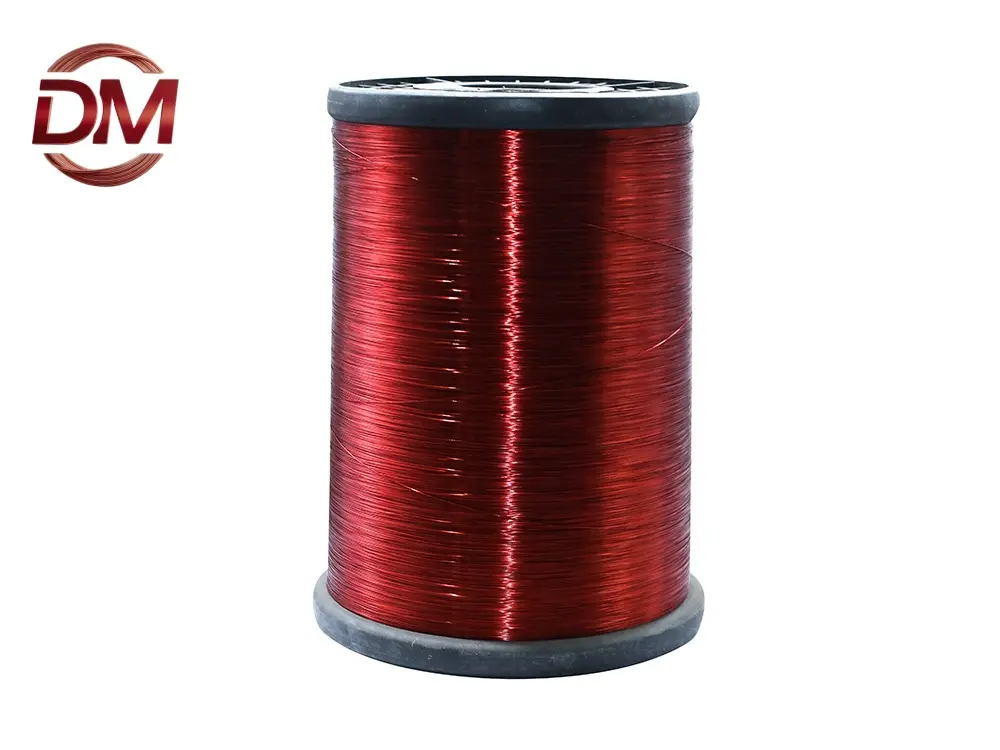

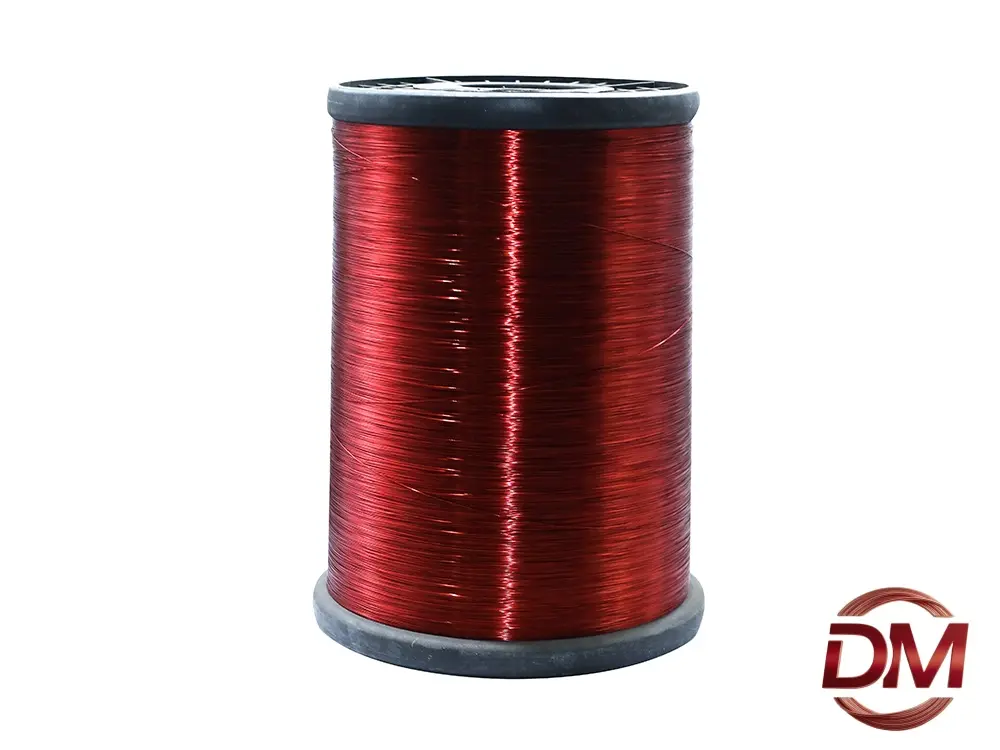

200 Class Enameled Aluminum Wire

Enameled aluminum round wire is a winding wire produced by processing round aluminum rods through multi-stage wire drawing systems, continuous annealing processes, and repeated painting and baking processes.

The composite enamel film of 200 class enameled aluminum wire is more flexible and less prone to cracking when bent.

At its rated temperature of 200°C, the thermal aging life of the insulating enamel film can reach 15-20 years.

It's suitable for high-temperature but non-extreme working conditions,such as household air conditioner compressors, refrigerator inverter compressors, motors, new energy auxiliary systems.

Product Types

Q(ZY/XY)L/200, El/AIWA/200

Temperature Class(℃): C

Manufacturing Scope: Ф0.10-6.00mm, AWG 1-34, SWG 6~SWG 38

Standard: NEMA, JIS, GB/T23312.7-2009, IEC60317-15

Spool Type: PT15 - PT270, PC500

Package of Enameled Aluminum Wire: Pallet Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Product Parameters

Manufacturing Scope	0.14mm-7.50mm, AWG 1-34, SWG 6~SWG 38
Standard	IEC,NEMA,JIS
Spool Type	PT15-PT270,PC500
Package of Enameled Aluminum Wire	Pallet Packing
Certification	UL, SGS, ISO9001,ISO14001, accept third party inspection as well
Quality Control	Company internal standard is 25%higher than IEC standard

Advantages of Enameled Aluminum Wire

1. The cost of aluminum wire is 30-60% lower than copper wire, which saves the cost of production.

2. The weight of aluminum wire is only 1/3 of copper wire, which saves the transportation cost.

3. Aluminum has a faster speed of heat dissipation than copper wire in the production.

4. For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

5. Enameled aluminum wire has good performance of refrigerant resistance, cold resistance, radiation resistance.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
